WisMesh RAK3312 ESP32-S3 Starter Kit

The WisMesh RAK3312 Starter Kit for Meshtastic is a new base and core board combo using the Espressif ESP32-S3 Dual Core module designed for ultra-low power consumption.

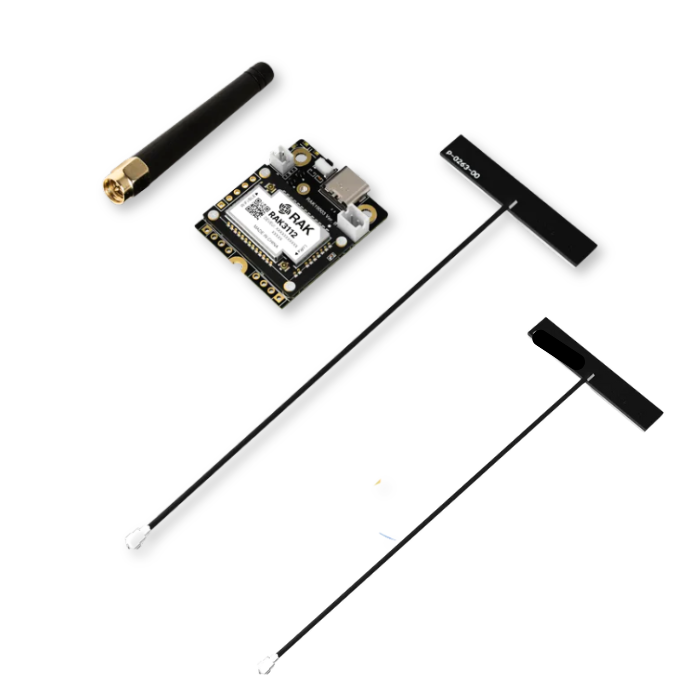

Includes:

-Choice of RAK19007 (full size) or RAK19003 (mini)

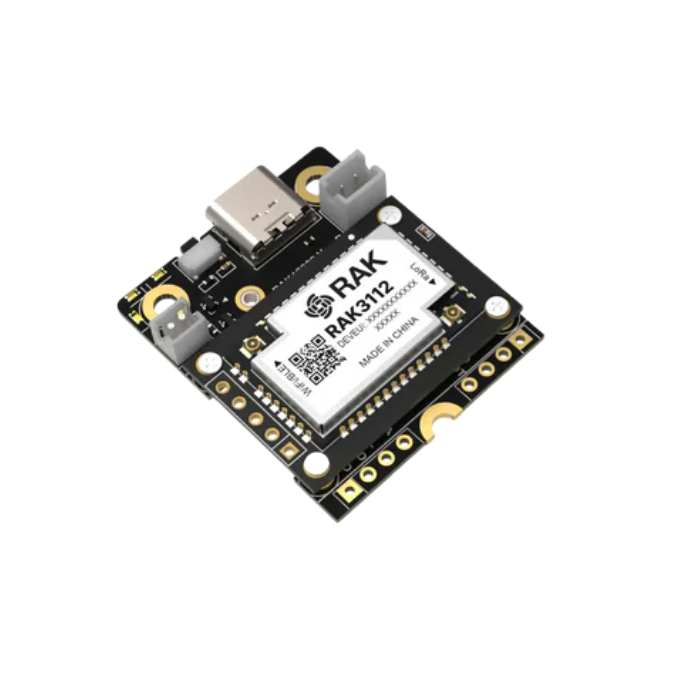

-RAK3312 Core Module (RAK3312 core features 3112 model radio)
-USB-C cable

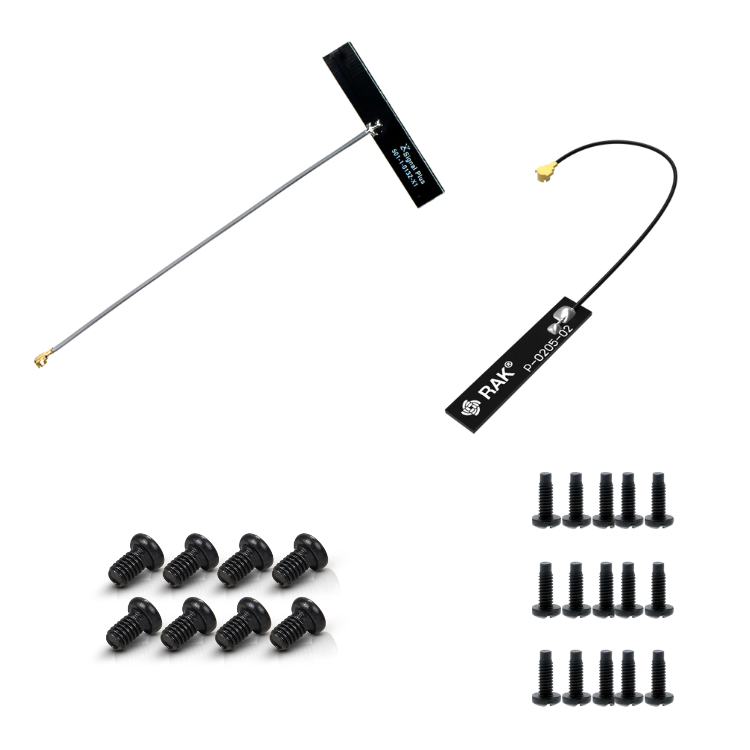

-MHF4 LoRa & BLE/WiFi antenna
-MHF4 to SMA pigtail and stubby antenna (note MHF4 is not the same as IPEX-

This is the US915 MHz version

Built for powerful, flexible LoRa mesh communication:

• Powered by the Espressif ESP32-S3 WiFi BLE Dual Core Module for LoRaWAN® with LoRa SX1262 - a dual-core WiFi + BLE module designed for high performance and low power use.
• Integrated SX1262 LoRa radio - enables long-range, reliable wireless messaging across nodes.
• Modular WisBlock design -easily expand with additional boards and sensors for custom setups.
• Meshtastic ready to go-pre-flashed firmware lets you build and deploy your private mesh network right out of the box.

Powered by the ESP32-S3 dual-core with WiFi, BLE, and LoRa SX1262, this kit offers superior range, plug-and-play setup, and modular WisBlock expansion. No soldering or firmware flashing required. Designed for off-grid communication and professional-grade reliability.

Why it's useful:

• Reliable Off-Grid Communication Device: Stay connected in remote or low-signal environments.
• Expandable Modular Design: Add supported WisBlock modules like sensors, displays, or GNSS for custom applications.
• Ready to Use: Pre-flashed firmware and included antenna simplify setup and testing.
• Global Frequency Support: Operates across 800–900 MHz for multi-region deployment.
• Protected Deployment: Compatible with Unify Enclosures for outdoor and rugged use.

Key Features of the RAK3312 Meshtastic Starter Kit

• RAK3312 Espressif ESP32-S3 WisBlock Core module, pre-flashed with the Meshtastic firmware - an ESP32-S3 Meshtastic board with SX1262 radio for long-range LoRa communication and low-power mesh operation.
• Choose variant by cart button:
  RAK19007 Full Base Board, 30x60mm with 4 sensor slots + IO slot
  OR
  RAK19003 Mini Base Board, 30x35mm with 2 sensor slots (no IO slot available)


• 1x LoRa, 1x WiFi/BLE antenna
• 1x MHF4 to SMA pigtail + stubby antenna (note MHF4 is not the same as IPEX

Ideal for extending communication in outdoor, field, or emergency settings without relying on network infrastructure. Whether you’re setting up a DIY LoRa mesh kit for emergency response and overlanding or deploying field communication nodes for research and exploration, the WisMesh RAK3312 Starter Kit delivers reliable, off-grid connectivity when you need it most.
