CB1 Custom Build Box1

This premium outdoor Meshtastic node is built on the RAK WisBlock platform with ESP32 WiFi/BLE connectivity, delivering reliable off-grid mesh communication and cloud bridging via MQTT.

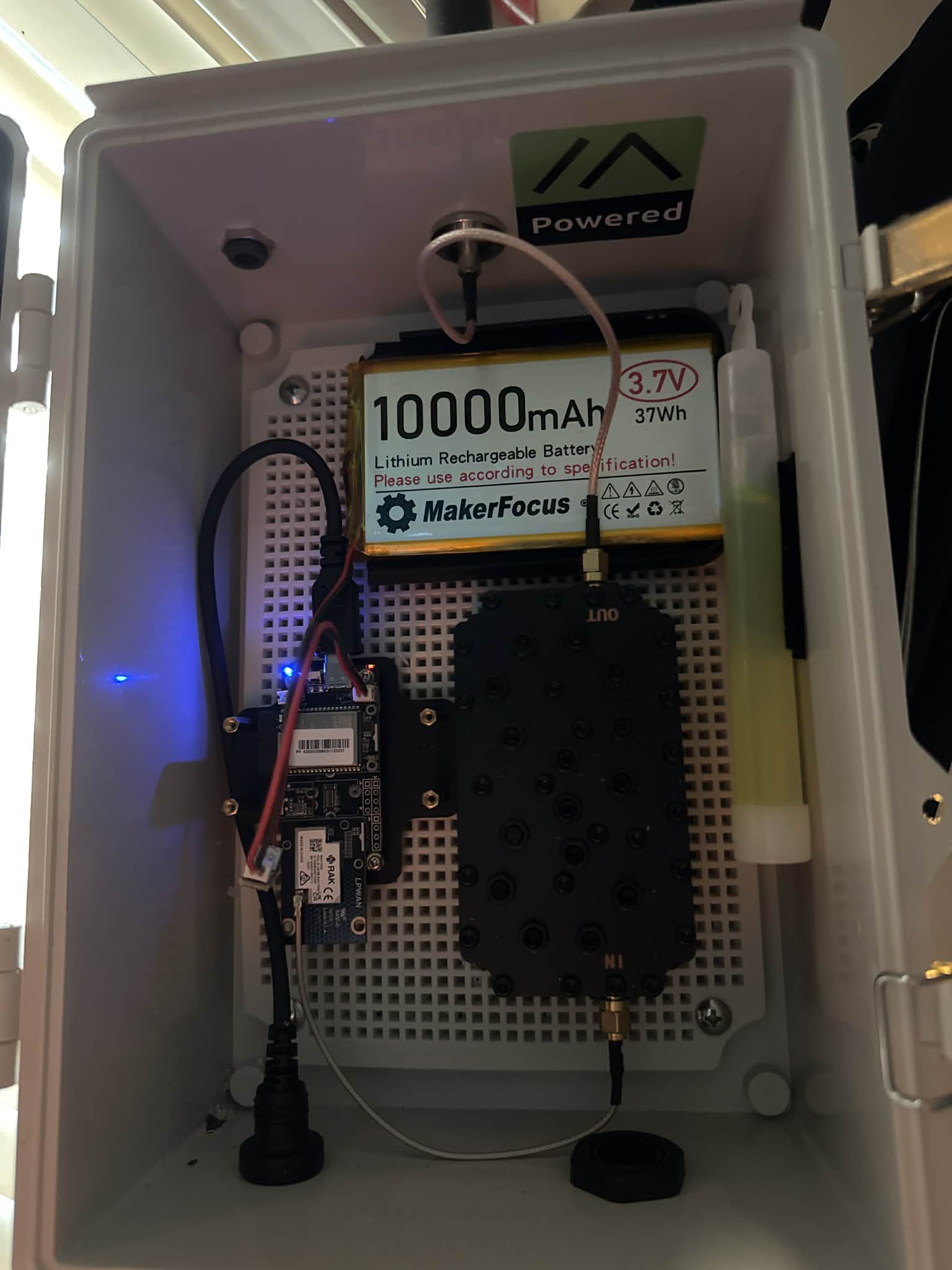

Featuring a 10,000mAh high-capacity LiPo battery for extended runtime, a 915 MHz cavity filter for superior signal clarity in noisy environments, and a high-gain 5 dBi omnidirectional antenna. The rugged weatherproof enclosure includes , USB-C waterproof pass-through for charging/programming, and a pre-drilled hole with cable gland for POE cable entry.

Bonus Glow Stick Included

Because let’s be real no self-respecting electronics wants to be stuck in the dark like some sad, lonely router. We throw in a glow stick so your node can light up the night, feel seen, and remind itself it’s not just another box in a box. Glows for up to 1 hours perfect for midnight deployments or just making your node look like it’s ready for a rave.

Key Features:

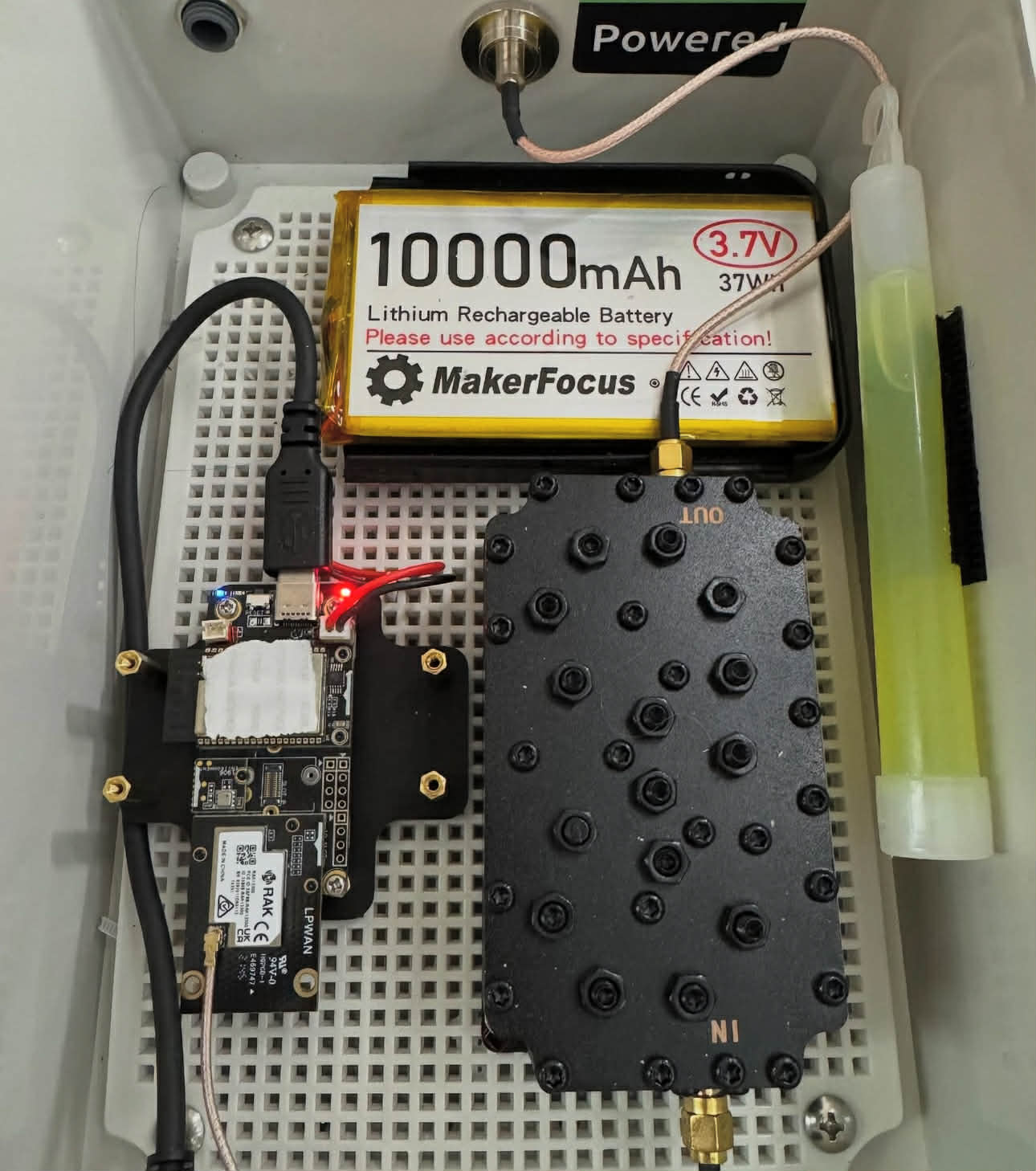

• Powerful Core: RAK11200 (ESP32) – WiFi, BLE, and Meshtastic firmware support

• Long-Range LoRa: RAK13300 (Semtech SX1262) – Dependable 915 MHz LoRa connectivity

• Flexible Base: RAK19007 – Multiple sensor/IO slots and USB-C interface

• Extended Power: MakerFocus 10,000mAh LiPo battery – Long-lasting performance

• Signal Enhancement: 915 MHz cavity filter – Reduces interference for better range

• Antenna: ALFA AOA-915-5ACM – 5 dBi outdoor omni for maximum coverage

• Rugged Enclosure: Weatherproof with suction cups, USB-C bulkhead, and POE gland

• Mood Lighting: Glow stick (because dark nodes are moody nodes)

NOTE: Updating firmware requires internal access to the unit- it cannot be done without opening the unit and connecting including jumpers.

Bridge the BOOT0 & GND pin holes with the provided Jumper.

MeshCore & Meshtastic Disclaimer

This product is compatible with Meshtastic and MeshCore, which are open-source mesh networking projects.

Meshtastic® is an open-source project licensed under the GNU General Public License (GPL).

MeshCore is an independent, open-source mesh networking project.

This website and its products are not affiliated with, endorsed by, or sponsored by the Meshtastic Project, the MeshCore Project, or their respective contributors.

All product names, logos, and trademarks remain the property of their respective owners and are used only to identify compatibility.

This product is sold as a third party accessory and is provided as is. Configuration, firmware installation, and operation are the responsibility of the end user. Wireless devices may be subject to local laws and regulations — users are responsible for ensuring compliance.
