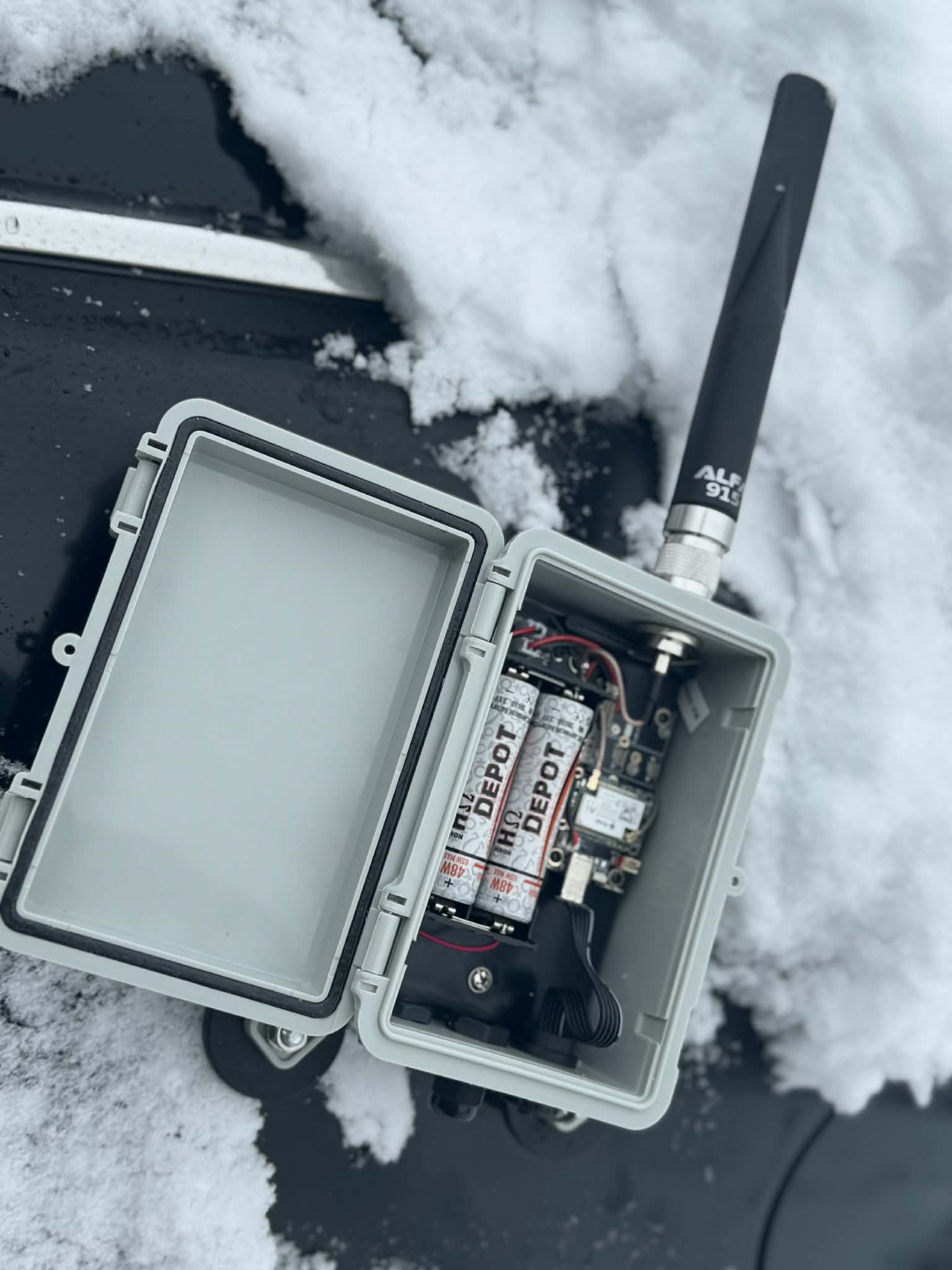

SRB-1 Solar Ready Box 1

This is a custom build ready to go solar ready build . Just add your own solar panel .

All holes predrilled and ready to go

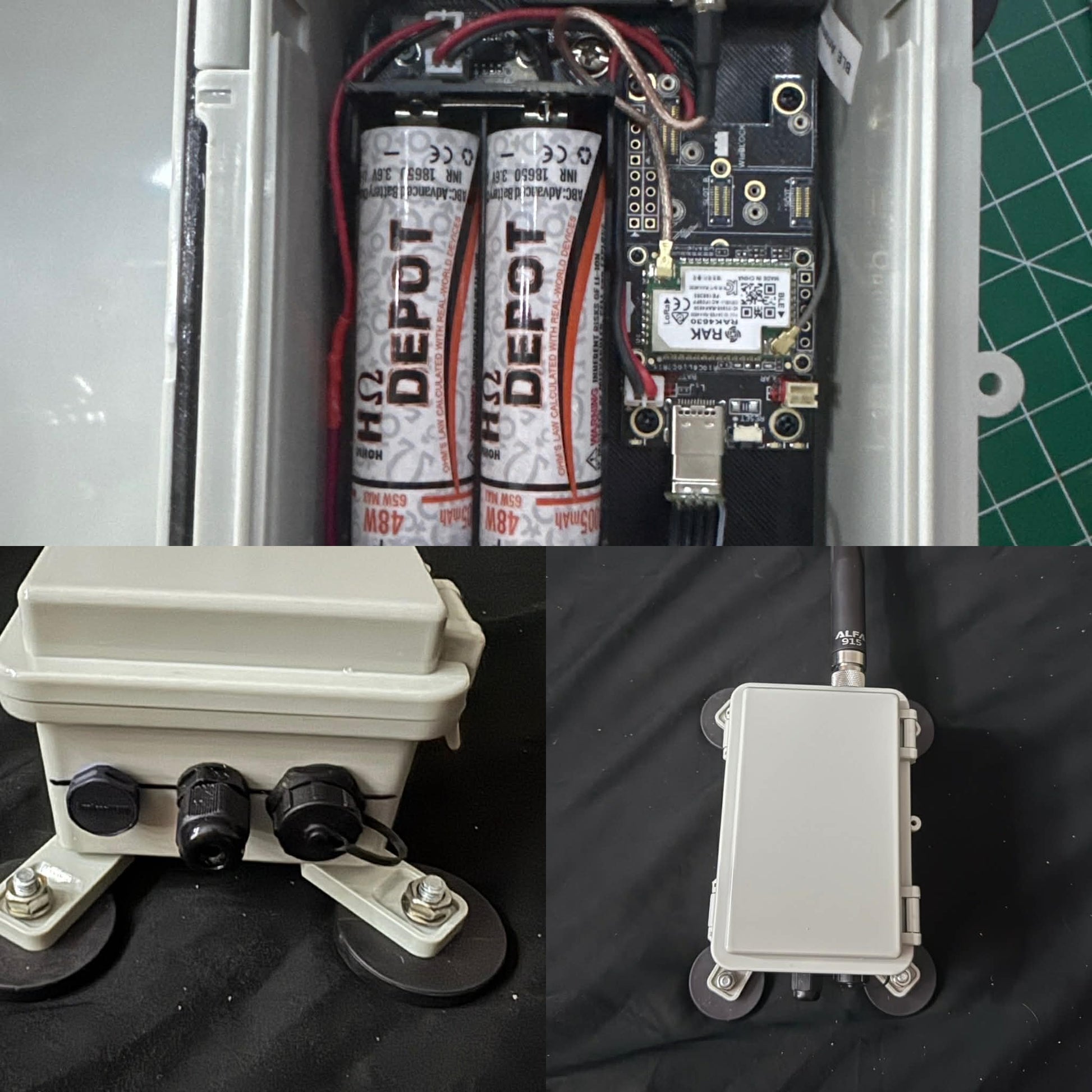

Build

• RAK19007 WisBlock Starter Kit (US915)
Base board + RAK4631 core (nRF52840 + SX1262 LoRa module)

• ALFA AOA-915-5ACM
5 dBi omnidirectional outdoor 915 MHz antenna (N-male connector)

• USB-C Waterproof Bulkhead Extension Cable


IP67/IP68 panel-mount USB-C pass-through for external charging/programming

• Amphenol VENT-PS1YBK-N8001
M12 enclosure vent (pressure equalization, hydrophobic membrane)

• Hummel CD07AR-BK Cable Gland
PG7 gland (2–5 mm cable, IP68 waterproof strain relief)

• Enclosure (gray hinged plastic box)
Weatherproof case with magnets

• Battery Holder
Dual 18650 parallel holder (for two 3.7V Li-ion cells)

• Antenna Cable (assumed)
IPEX/u.FL to N-female pigtail (connects RAK module to ALFA antenna)

That’s the core setup simple, rugged, and optimized for outdoor use!
