RAKwireless WisBlock Mini Meshtastic Starter Kit US915 (Mini Starter Kit with RAK19003 Base)

Introducing the Meshtastic Starter Kit Mini from RAKwireless  compact, powerful, and ready to go.

This mini kit features the smaller RAK19003 baseboard with 2 module slots (compared to 4 on the full-size starter kit), making it perfect for lightweight builds, testing, or portable setups.
This kit works with both MeshCore and Meshtastic, giving you full flexibility in how you build and run your network.

What’s Included

• 1× RAK19003 WisBlock Baseboard

• 1× RAK4631 WisBlock Core (RAK4630 pre-soldered + Meshtastic firmware pre-flashed)

• 1× IPEX LoRa PCB antenna

• 1× IPEX BLE PCB antenna

• 1× Small dipole antenna

• 1× IPEX-to-SMA adapter for dipole antenna

• Assembly screws

• USB-C to USB-A cable

• US915 version (compatible with AU915). Can be used in the EU with a separate 868 MHz antenna.

Product Features

• Plug-and-play WisBlock ecosystem: Core MCU, small sensors, extra modules, storage, and power modules

• Compact, portable form factor

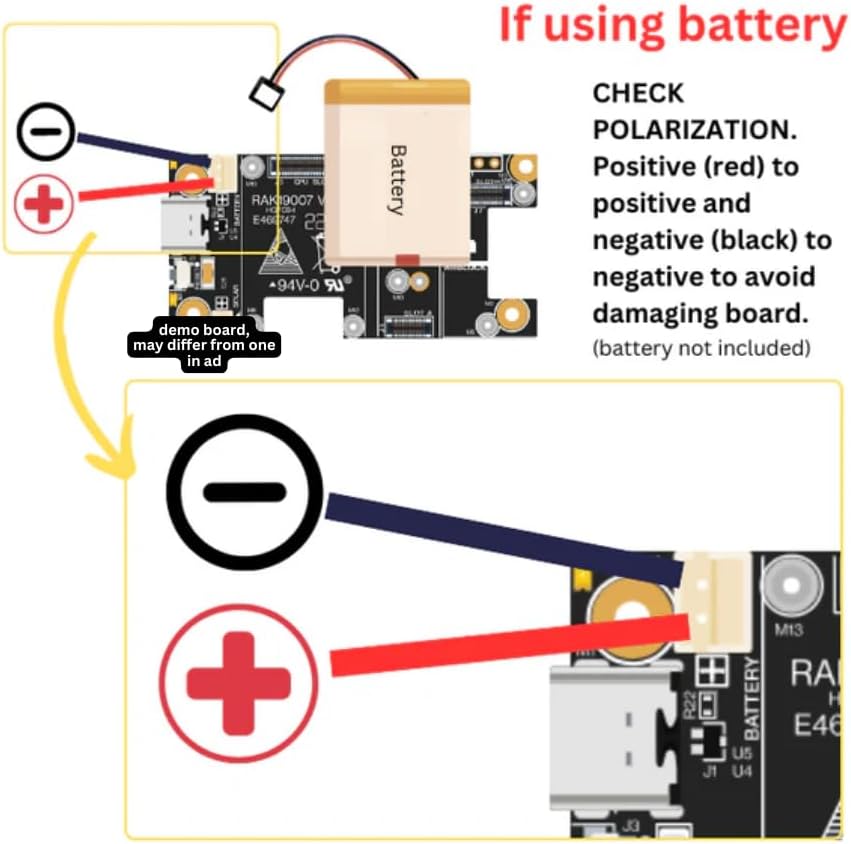

• Supports three power supply sources

• Optimized for low power consumption

• I2C, UART, GPIO, and analog input via solder pads

• Two user-definable LEDs

• Reset button

• USB-C debug port

• 1× WisBlock Core slot

• 2× 24-pin WisConnector module slots

What are Meshtastic & MeshCore?

Meshtastic is an off-grid, long-range messaging system that uses affordable radios to build a decentralized mesh network. Messages hop from node to node, covering distances of kilometers/miles without WiFi or cell service.

MeshCore is a compatible mesh networking platform designed for flexible, high-performance radio communication — and this kit works with it out of the box.
